CCE-A11121L11/GY
Art.-Nr. 857-01446 | CCE-A11121L11/GY | Detaljer

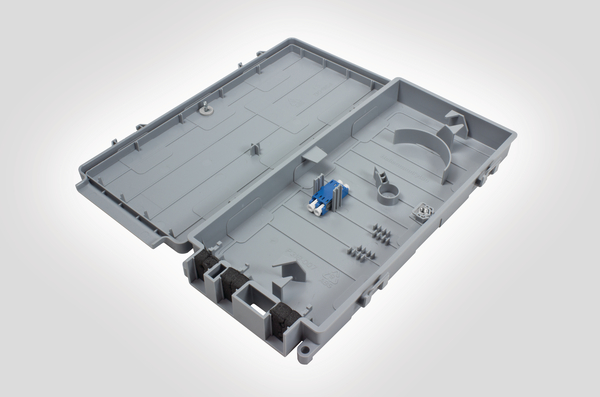

Customer Connection Enclosure with 1 LC PC adaptor.

Add to watchlist

Hitta en distributör nära dig

Downloads CAD-Download

Fler produkter inom produktgruppen:

Customer Connection Enclosure >

Basdata

Användningsområde	The Customer Connection Enclosure (CCE) has been designed to be used as an external building entry point. The closure can be wall mounted providing a fibre termination and external network test point. The CCE has been designed to be the same size as a 'Brick Blow-Out Cover' to cover any unslightly damage caused by drilling.
Färg	Grå (GY)
Förp innehåll	20st
GLOBAL PART DESCRIPTION	CCE-A11121L11/GY
Kabel ∅ max	8.5mm
Kabel ∅ min	2.5mm
Kontaktfärg	Blå (BU)
Kontakttyp	LC
Material	Akrylnitril butadien styren UV-tålig (ABSUV)
Skarvkapacitet	4
Typ	CCE-A11121L11/GY
Typ av förpackn.	EA
Variant	Utomhuskapsling FTTx

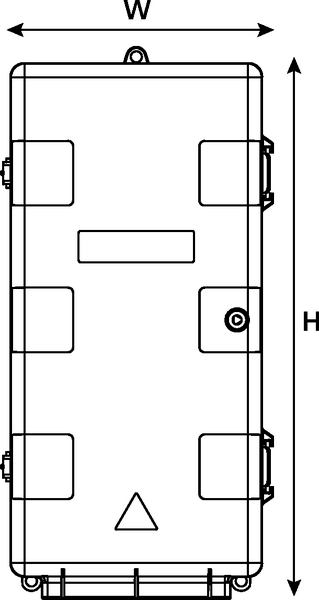

Produktdimensioner

Bredd (W)	130mm
Djup (D)	37mm
Höjd (H)	263mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	5022660162633
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC000000
ETIM 9.0 Key	EC000000
UNSPSC key	43223338
