CFNIRS 19 Port M Length Closure with 12 Compact SE-IR 3A Trays
Art.-Nr. 857-02143 | CFNIRS-MXBDWX | Detaljer

M-Length 19 Port CFN with Compact SE-IR Trays.

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

CFNIRS 19 Port Integrated Routing Closure >

Basdata

Ant. brickor	12
Antal portar	1, 2, 16
Färg	Svart (BK)
Förseglingsmetod	Cablelok
GLOBAL PART DESCRIPTION	CFNIRS-MXBDWX
Kabel ∅ max	16.5mm
Kabel ∅ min	4.0mm
Material	Polypropen, UV-resistent (PPUV), Polyamid 6.6 glasfiberförstärkt (PA66GF60)
Port	LM, B, D
Skarvkapacitet	288
Typ	CFNIRS-MXBDWX
Typ av förpackn.	box
Variant	Utomhuskapsling FTTx

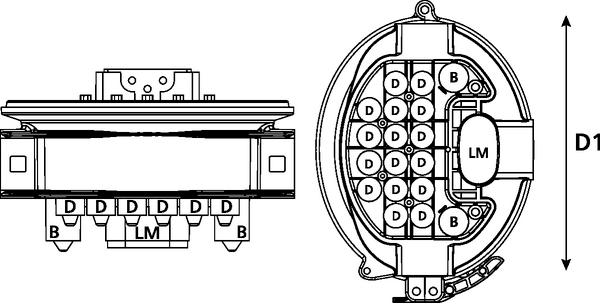

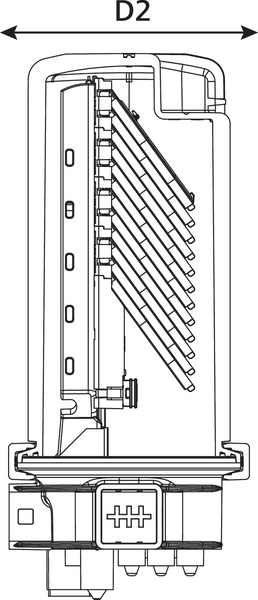

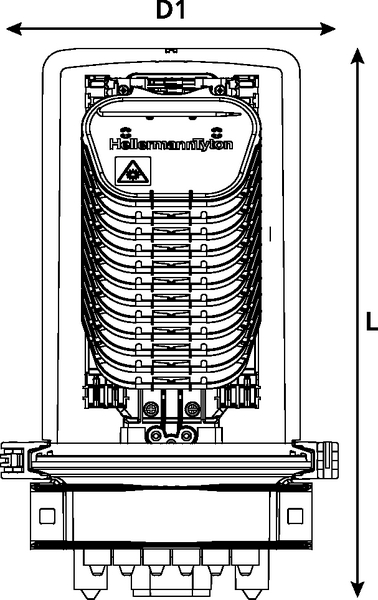

Produktdimensioner

D1	250mm
D1	9.85"
D2	7.09"
D2	180mm
Längd	410mm
Längd (L)	410mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	5022660193927
Förpackning 1 - Vikt (kg)	2.8kg
PL1 Bredd förpackning	0.178m
PL1 Höjd förpackning	0.25m
PL1 Kvantitet	1
PL1 Längd förpackning	0.45m
PL1 Typ	box
PL1 Volym förpackning	0.02003m³
Ursprungsland	GB
