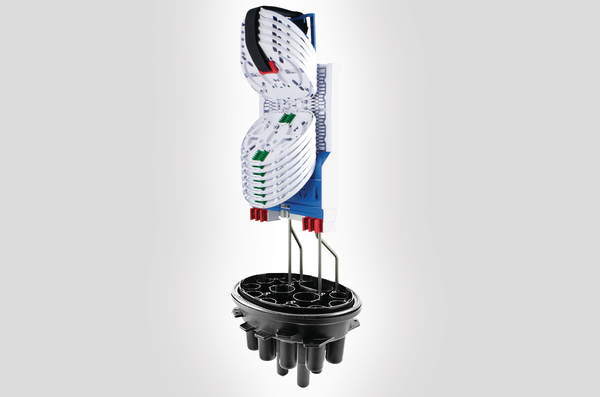

FDN 16 port AB length IR closure with 12 SE-IR MKI trays fitted with 2 x 3A splice bridges
Art.-Nr. 857-01004 | FDNIR-ABXAWX | Detaljer

FDN IR 16 Port AB-Length Closure

Maximum 144 fibre splice capacity
15 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst closure is left in-situ
Fixing points for external cable management attachments
Positive fibre management to ensure consistent 30mm bend radii throughout
Bi-directional fibre routing
Supplied with 12 SE-IR MKI Trays fitted with 2 x 3A (Green) splice protector inserts
Maximum 12 splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

FDN 16 Port Integrated Routing Closure >

Basdata

Ant. brickor	12
Antal portar	1, 2, 9, 4
Färg	Svart (BK)
Förseglingsmetod	Cablelok, Värmekrymp
GLOBAL PART DESCRIPTION	FDNIR-ABXAWX
Material	Polypropen (PP)
Port	L, B, T, S
Typ	FDNIR-ABXAWX
Typ av förpackn.	box
Variant	Utomhuskapsling FTTx

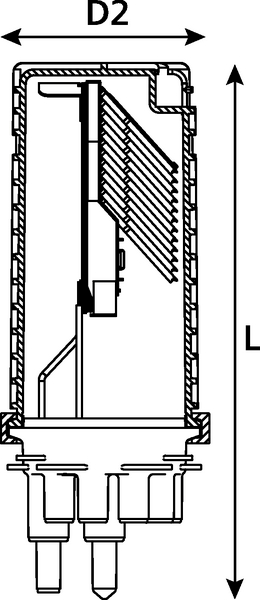

Produktdimensioner

D1	312mm
D2	222mm
Längd	561mm
Längd (L)	561mm

Downloads

Specifikationer

Farligt gods

Nej

Logistik och Förpackning

EAN kod	5022660133176
Förpackning 1 - Vikt (kg)	6.5kg
PL1 Bredd förpackning	0.32m
PL1 Höjd förpackning	0.72m
PL1 Kvantitet	1
PL1 Längd förpackning	0.32m
PL1 Typ	box
PL1 Volym förpackning	0.07373m³
Tullstatnummer	85176200
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
