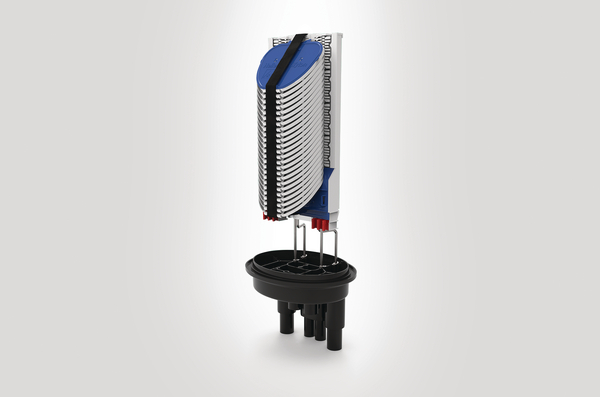

FDN 59 port B length IR closure with 24 SE-IR MKII trays fitted with 2 x 3A splice bridges
Art.-Nr. 857-02038 | FDNIR-BXXCMX | Detaljer

FDN IR 59 Port B-Length Closure.

Maximum 288 fibre splice capacity
58 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst closure is left in-situ
Fixing points for external cable management attachments
Positive fibre management to ensure consistent 15mm bend radius throughout
Bi-directional fibre routing
Supplied with 24 SE-IR MKII Trays fitted with 2 x 3A (Green) splice protector inserts
Maximum 12 splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

FDN 59 Port Integrated Routing Closure >

Basdata

Ant. brickor	24
Antal portar	1, 2, 4, 2, 52
Färg	Svart (BK)
Förseglingsmetod	Cablelok, Värmekrymp
GLOBAL PART DESCRIPTION	FDNIR-BXXCMX
Material	Polypropen (PP)
Port	L, T, S, B, R
Skarvkapacitet	288
Typ	FDNIR-BXXCMX
Typ av bricka	Integrated Routing SE MKII
Typ av förpackn.	box
Variant	Utomhuskapsling FTTx

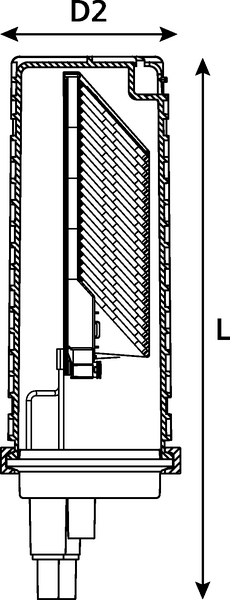

Produktdimensioner

D1	312mm
D2	222mm
Längd	663mm
Längd (L)	663mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	5022660174520
Förpackning 1 - Vikt (kg)	7.20kg
PL1 Bredd förpackning	0.32m
PL1 Höjd förpackning	0.72m
PL1 Kvantitet	1
PL1 Längd förpackning	0.32m
PL1 Typ	box
PL1 Volym förpackning	0.07373m³
Tullstatnummer	85176200
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
