FDN 16 port C length tubed closure with basket and 36 x SMF SE-A 3A splice trays
Art.-Nr. 857-01017 | FDNTB-CXBAH6X | Detaljer

FDN 16 Port C-Length Closure with Basket

Maximum 864 fibre splice capacity when using SMF SE-A trays
15 round ports and 1 oval port
Moulded supports allow the cover to be removed whilst closure is in-situ
Fixing points for external cable management attachments

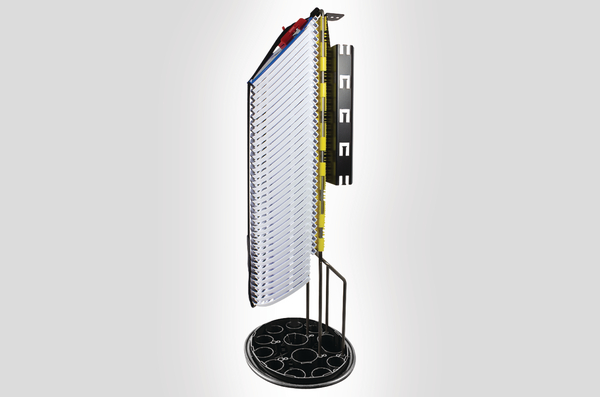

Fibre storage basket for loop through applications
Accommodates Hellipse NZDF SE-A and SMF SE-A trays
Maximum 24 splices per tray without double stacking (SMF SE-A trays)
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional flash test valve and/or grounding feed through

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

FDN 16 Port Tubed Closure >

Basdata

Ant. brickor	36
Antal portar	1, 2, 4, 9
Färg	Svart (BK)
Förseglingsmetod	Cablelok, Värmekrymp
GLOBAL PART DESCRIPTION	FDNTB-CXBAH6X
Port	L, T, B, S
Skarvkapacitet	864
Typ	FDNTB-CXBAH6X
Typ av bricka	Hellipse SMF SE-A
Typ av förpackn.	kit
Variant	Utomhuskapsling FTTx

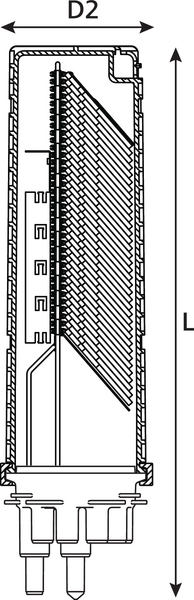

Produktdimensioner

D1	312mm
D2	222mm
Längd	789mm
Längd (L)	789mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	5022660133305
Förpackning 1 - Vikt (kg)	8.2kg
PL1 Bredd förpackning	0.331m
PL1 Höjd förpackning	0.318m
PL1 Kvantitet	1
PL1 Längd förpackning	0.858m
PL1 Typ	box
PL1 Volym förpackning	0.09031m³
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
