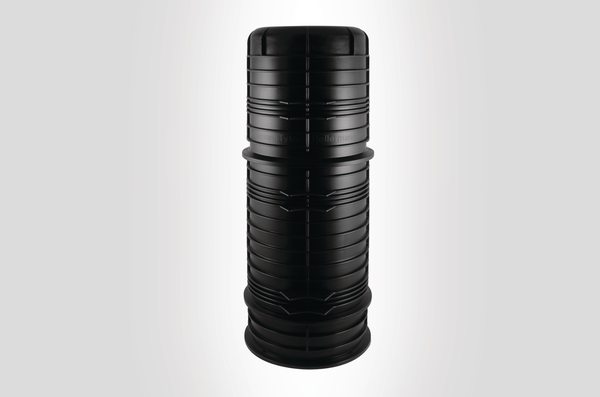

FML IR C length closure with 30 SE-IR MKI trays fitted with 2 x 3A splice bridges
Art.-Nr. 857-00578 | FMLIR-CXXCWX Detaljer

  • Maximum 360 fibre splice capacity
  • 12 round ports and 1 oval port
  • Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
  • Bi-directional fibre routing

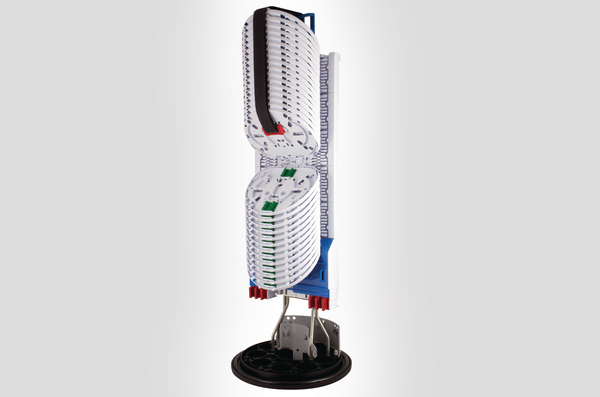

  • Supplied with 30 SE-IR MKI Trays fitted with 2 x 3A (Green) splice protector inserts
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Visa mer
Ant. brickor 30
Antal portar 1, 2, 6, 4
Färg Svart (BK)
Förseglingsmetod Cablelok, Värmekrymp
GLOBAL PART DESCRIPTION FMLIR-CXXCWX
Material Polypropen (PP)
Port L, T, S, B
Skarvkapacitet 360
Typ FMLIR-CXXCWX
Typ av förpackn. box
Variant Utomhuskapsling FTTx

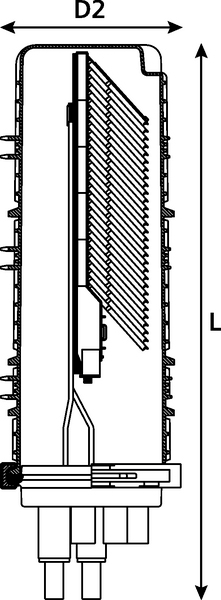

D1 220mm
D2 275mm
Längd 748mm
EAN kod 5022660100987
Förpackning 1 - Vikt (kg) 6.5kg
PL1 Bredd förpackning 0.32m
PL1 Höjd förpackning 0.32m
PL1 Kvantitet 1
PL1 Längd förpackning 0.84m
PL1 Typ box
PL1 Volym förpackning 0.08602
Ursprungsland GB
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
