16/08/2024

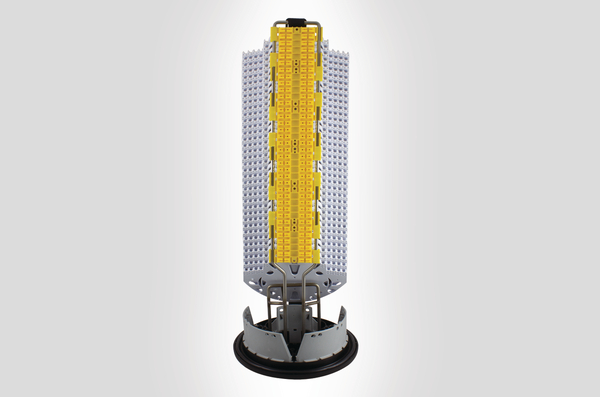

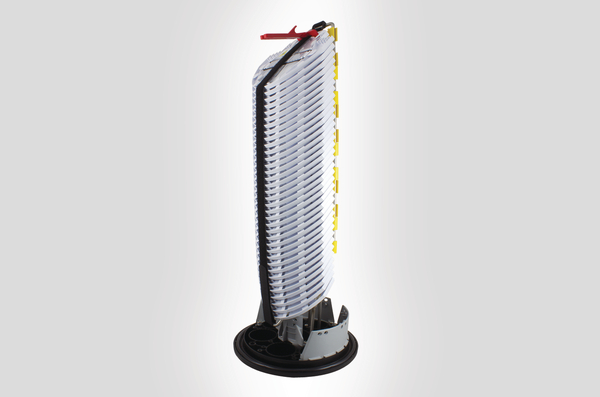

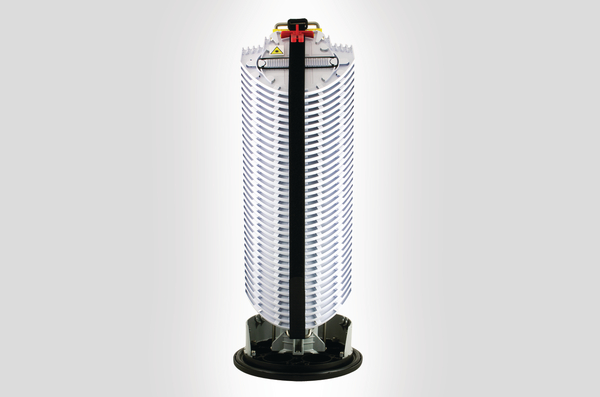

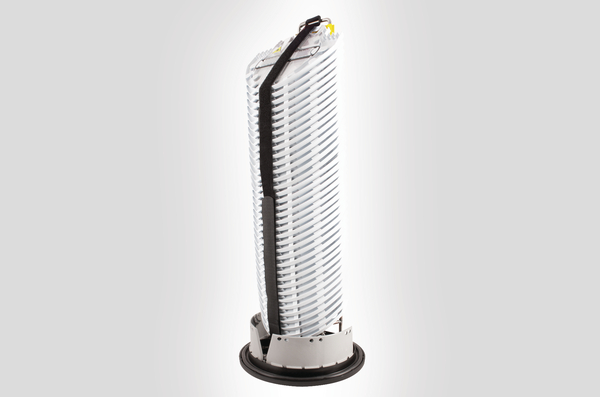

FML C length tubed closure with 36 NZDF SE-B trays fitted with 2 x 3A splice bridges
Art.-Nr. 857-00682 | FMLTB-CXXCE61 | Detaljer

FML C-Length Closure

Maximum 432 fibre splice capacity
12 round ports and 1 oval port
Pre-tubed to trays to allow for easy insertion of fibre
Supplied with 36 NZDF SE-B Trays fitted with 2 x 3A (Green) splice
Maximum 12 splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional flash test valve and/or grounding feed-through

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

FML Tubed Closure >

Basdata

Ant. brickor	36

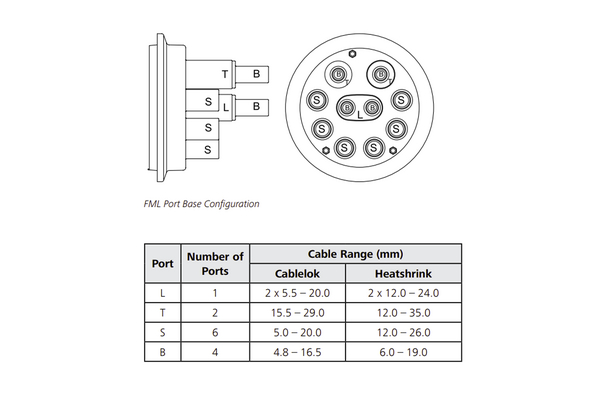

Antal portar	1, 2, 6, 4
Färg	Svart (BK)
Förseglingsmetod	Cablelok, Värmekrymp
GLOBAL PART DESCRIPTION	FMLTB-CXXCE61
Port	L, T, S, B
Skarvkapacitet	432
Typ	FMLTB-CXXCE61
Typ av bricka	Hellipse NZDF SE-B
Typ av förpackn.	kit

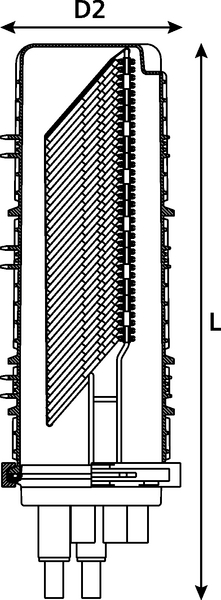

Produktdimensioner

D1	220mm
D2	275mm
Längd	748mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	5022660112942
Förpackning 1 - Vikt (kg)	6.5kg
PL1 Bredd förpackning	0.32m
PL1 Höjd förpackning	0.32m
PL1 Kvantitet	1
PL1 Längd förpackning	0.84m
PL1 Typ	box
PL1 Volym förpackning	0.08602m³
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
