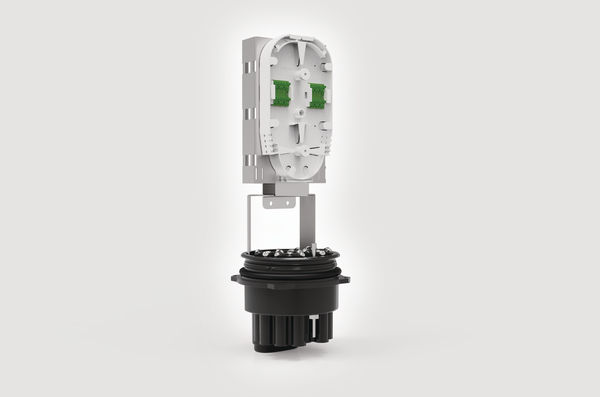

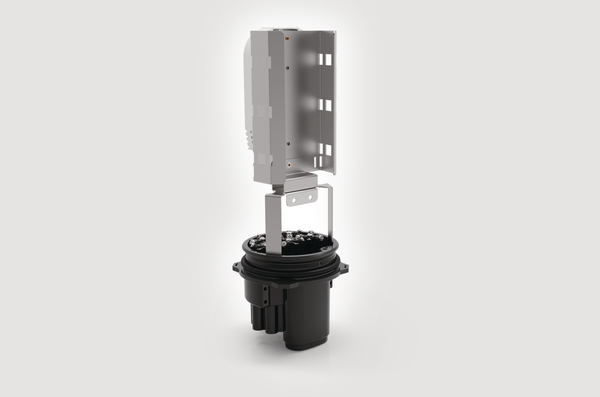

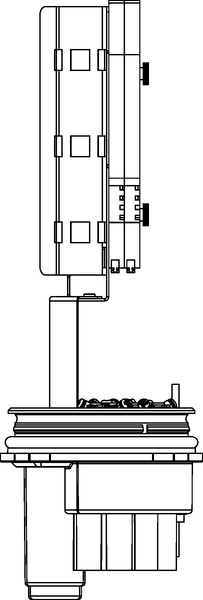

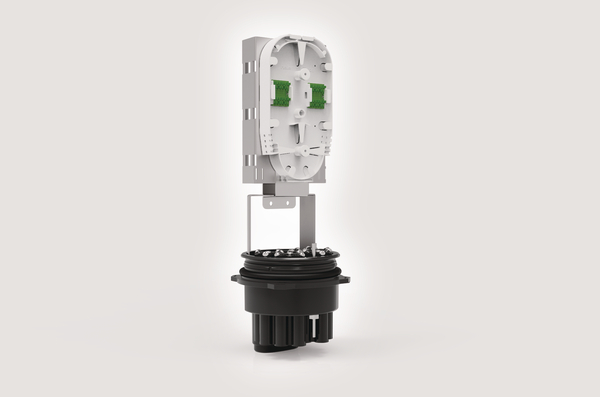

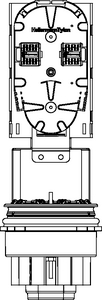

FRBU 16 port M length closure with 2 x Hellapon small trays
Art.-Nr. 857-02064 | FRBTB-MXBSA21 | Detaljer

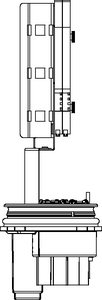

FRBU, 16 Port, 2 X Hellapon Small, Basket

Maximum 24 fibre splice capacity

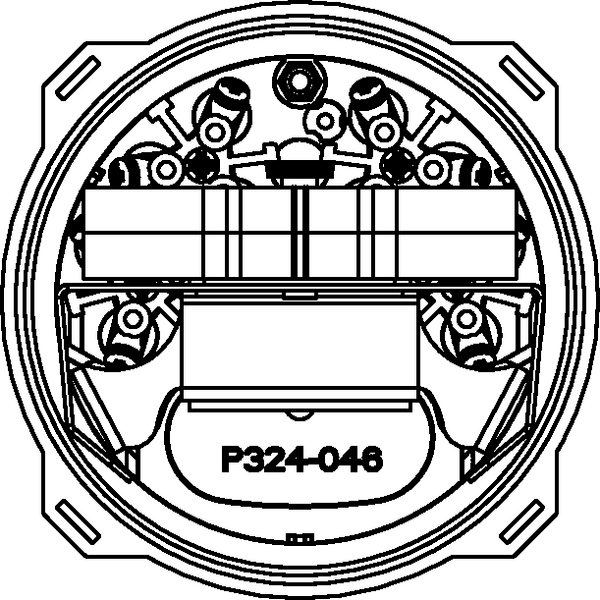

16 round ports and 1 oval port
Fibre storage basket for loop through applications

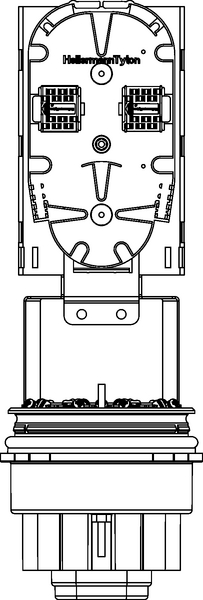

2 x Hellapon Small trays
Maximum 12 splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional flash test valve and/or grounding feed-through

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

FRBU 16 Port Closure >

Basdata

Ant. brickor	2
Antal portar	1, 16
Färg	Svart (BK)
Förseglingsmetod	Cablelok, Värmekrymp
GLOBAL PART DESCRIPTION	FRBTB-MXBSA21
Port	LM, R
Skarvkapacitet	24
Typ	FRBTB-MXBSA21
Typ av bricka	Hellapon Small
Typ av förpackn.	kit
Variant	Utomhuskapsling

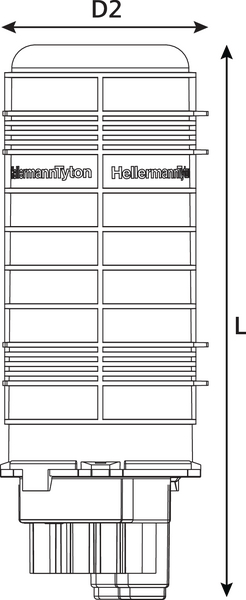

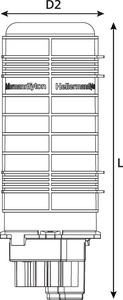

Produktdimensioner

D1	130mm
D2	130mm
Längd	360mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	5022660174872
Förpackning 1 - Vikt (kg)	1.6kg
PL1 Bredd förpackning	0.14m
PL1 Höjd förpackning	0.14m
PL1 Kvantitet	1
PL1 Längd förpackning	0.54m
PL1 Typ	box
PL1 Volym förpackning	0.01058m³
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
