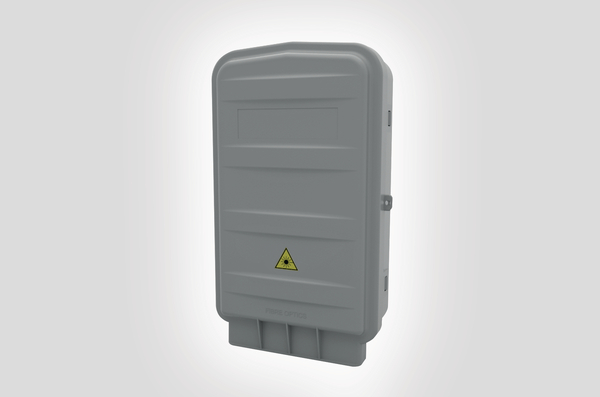

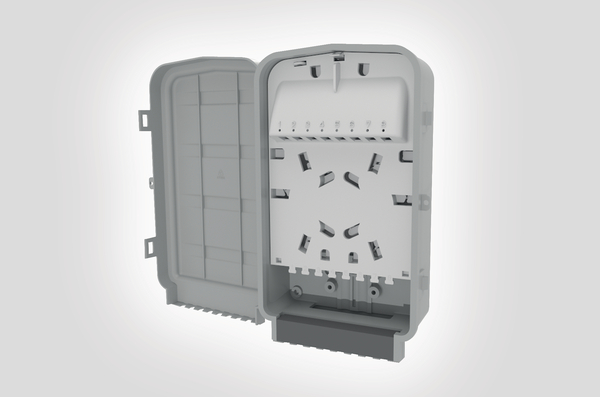

S1 Series MDU/MBU Enclosures
Art.-Nr. 857-01520 | MDU-S1-02LC Detaljer

Denna produkt är inte tillgänglig längre.
Användningsområde Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) network with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Färg Grå RAL 7035 (7035)
Förp innehåll 1st
GLOBAL PART DESCRIPTION MDU-S1-02LC
Kabel ∅ max 10mm
Kabel ∅ min 7mm
Material Polykarbonat (PC)
Skarvkapacitet 24
Typ MDU-S1-02LC
Typ av förpackn. EA
Variant Inom/Utomhuskapsling FTTx

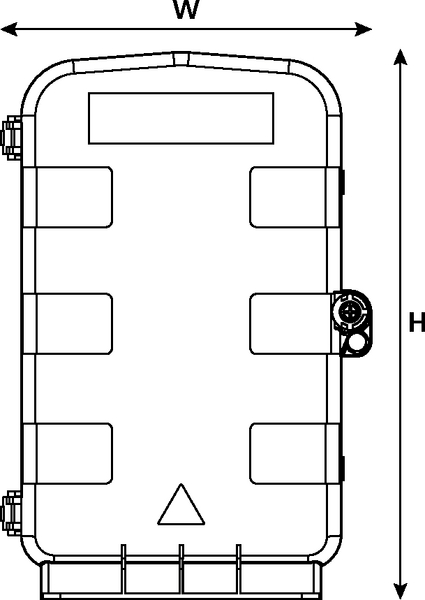

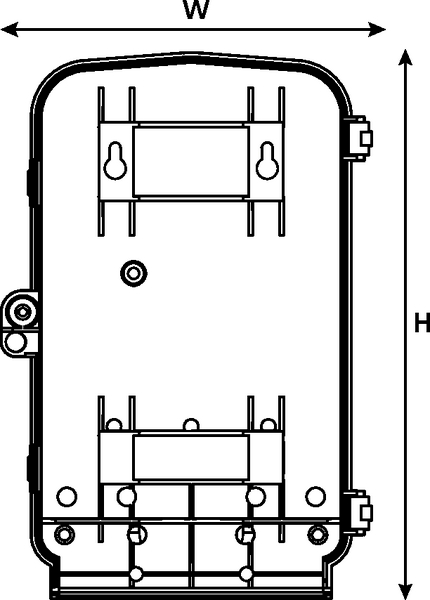

Bredd (W) 154mm

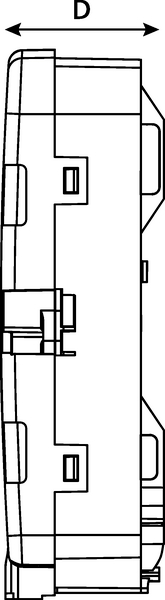

Djup (D) 72mm
Höjd (H) 241mm
EAN kod 5022660164422
Förpackning 1 - Vikt (kg) 0.606kg
PL1 Kvantitet 1
PL1 Typ påse
Ursprungsland GB
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
