UFC IR BC length closure with basket and 18 SE IR MKII trays with ribbon splice bridges
Art.-Nr. 857-02330 | UFCIR-BCBCQX | Detaljer

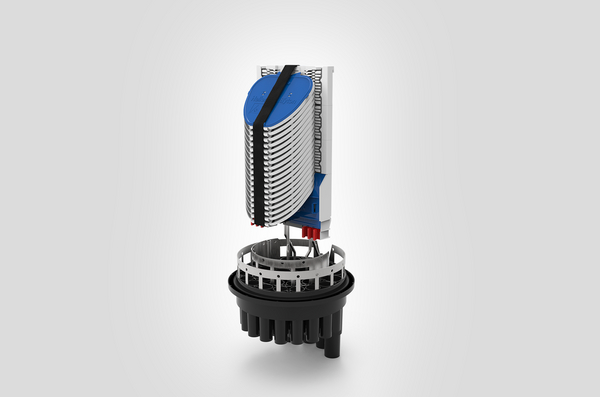

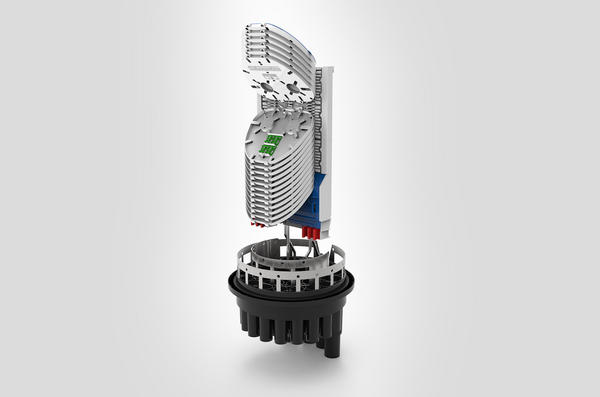

UFC IR BC-Length Closure.

Maximum 216 fibre splice capacity
28 round ports and 2 oval ports
Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
Fibre storage basket for loop through applications
Bi-directional fibre routing

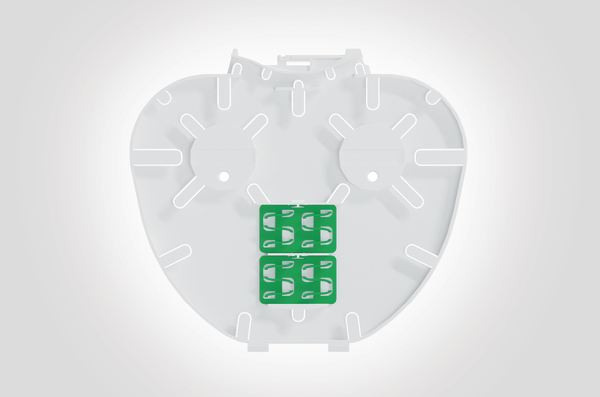

Supplied with 18 SE IR MKII trays with Ribbon splice bridges
Maximum of 4 (8 or 12) ribbon cable splices per tray
Splitter accommodation
Cablelok compatible for all port sizes
Quick release cover
Optional pressure release valve

Add to watchlist

Hitta en distributör nära dig

Fler produkter inom produktgruppen:

UFC Integrated Routing Closure >

Basdata

Antal portar	1, 1, 2, 10, 16
Färg	Svart (BK)
GLOBAL PART DESCRIPTION	UFCIR-BCBCQX
Material	Polypropen (PP)
Port	L, LM, T, S, B
Skarvkapacitet	216
Typ	UFCIR-BCBCQX
Typ av bricka	Integrated Routing SE MKII
Typ av förpackn.	box
Variant	Utomhuskapsling FTTx

Produktdimensioner

D1	275mm
D2	310mm
Längd	598mm

Downloads

Specifikationer

Logistik och Förpackning

EAN kod	4031026684222
Förpackning 1 - Vikt (kg)	7.2kg
PL1 Bredd förpackning	0.322m
PL1 Höjd förpackning	0.313m
PL1 Kvantitet	1
PL1 Längd förpackning	0.728m
PL1 Typ	box
PL1 Volym förpackning	0.07337m³
Ursprungsland	GB

Mer information

ETIM 8.0 Key	EC002067
ETIM 9.0 Key	EC002067
