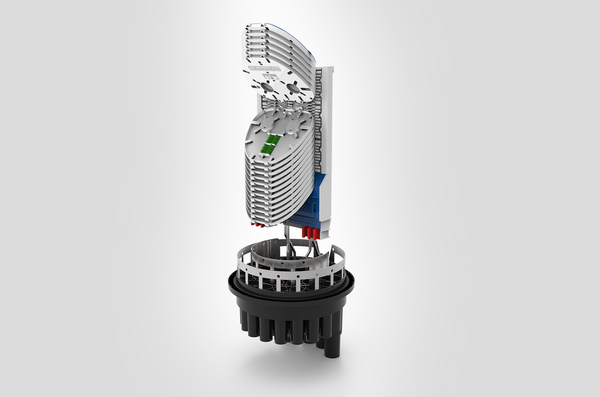

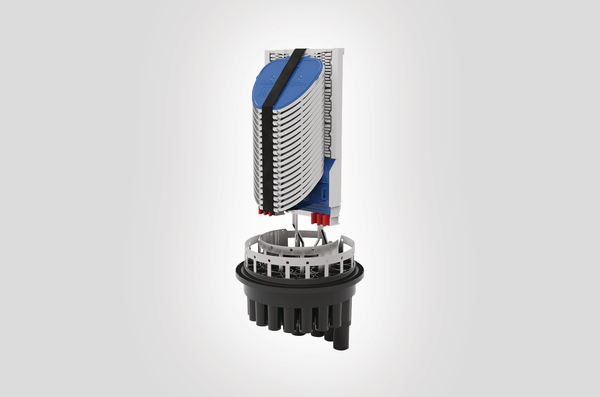

UFC IR BC length closure with 18 SE-IR MKII trays each with 2 x 3A splice bridges
Art.-Nr. 857-02031
| UFCIR-BCXCMX
|
Detaljer
- Maximum 216 fibre splice capacity
- 28 round ports and 2 oval ports
- Positive fibre management to ensure consistent 15mm minimum fibre bend radius throughout
- Bi-directional fibre routing

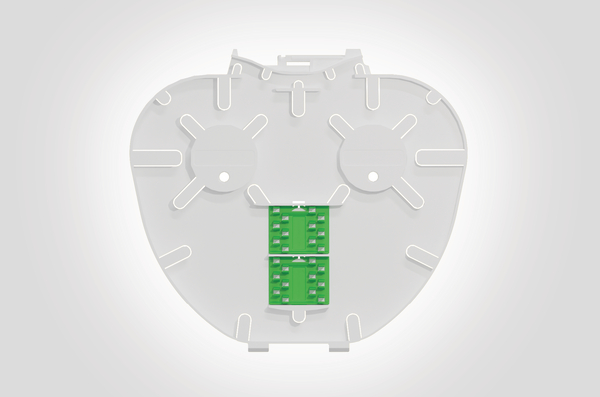

- Supplied with 18 SE-IR MKII Trays fitted with 2 x 3A (Green) splice protector inserts
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Fler produkter inom produktgruppen:
| Ant. brickor | 18 |
| Antal portar | 1, 1, 2, 10, 16 |
| Färg | Svart (BK) |
| Förseglingsmetod | Cablelok, Värmekrymp |
| GLOBAL PART DESCRIPTION | UFCIR-BCXCMX |
| Material | Polypropen (PP) |
| Port | L, LM, T, S, B |
| Skarvkapacitet | 216 |
| Typ | UFCIR-BCXCMX |
| Typ av bricka | Integrated Routing SE MKII |
| Typ av förpackn. | box |
| Variant | Utomhuskapsling FTTx |
